Product Description
Water hydromassage through eight jets
This system takes water from the tub and returns it under pressure through eight jets. It differs from air massage, which creates bubbles using a blower. Both systems can be combined when the shell and equipment area are prepared for the two separate circuits.
| Type | Hydromassage / water massage |
|---|---|
| Number of jets | 8 |
| Pump power | Approximately 1 kW |
| Supply | Approximately 220 V |
| Current | Approximately 5 A |
| Control | Pneumatic button and control box |

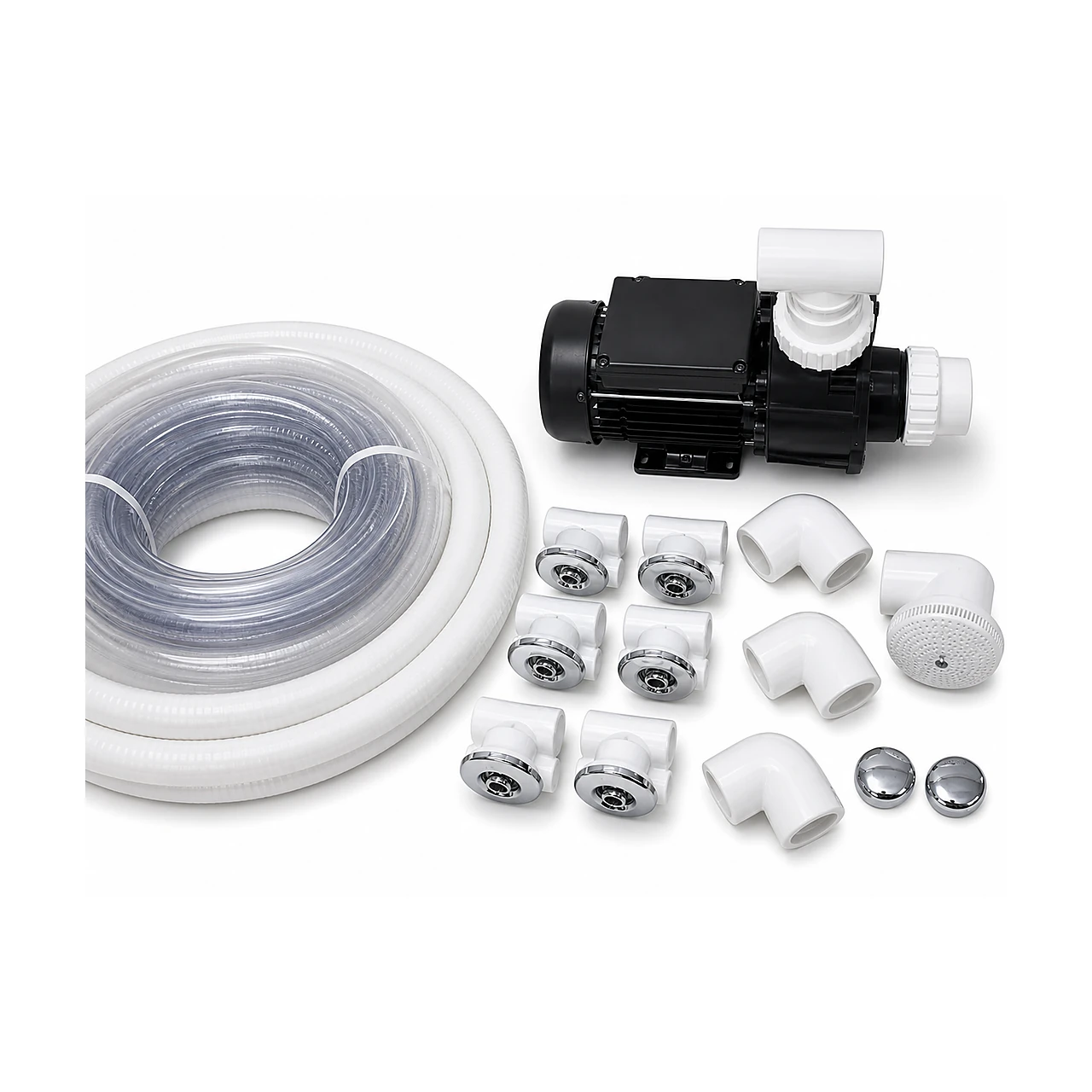

Included components
| Pumping | Pump and suction fitting |
|---|---|
| Massage | Eight water jets |
| Water circuit | Pipes, valves and fittings |
| Control | Pneumatic button and control box |
| Sealing | Seals required for the supplied system |
Plan the system with the tub configuration
Define the positions of all eight jets, the suction fitting, pump and control button as part of the tub configuration.
Electrical supply
The available figures are approximately 220 V, 5 A and 1 kW. A professional electrician must size the wiring, earthing and protective devices for the complete installation. These approximate values do not replace the electrical design for the site.
Winter preparation
If freezing is possible and the tub is not kept in operation, drain the hydromassage circuit and pump. The precise procedure depends on the arrangement of the pipes and pump in the actual tub.
Water hydromassage or air massage?
Hydromassage provides directional action through eight water jets. Air massage supplies bubbles through a separate circuit. Both can be selected where their integration is planned in the tub configuration.
Frequently asked questions
How many jets does the current system include?
It includes eight water jets.
Are the pump and connections supplied?
Yes. The pump, suction fitting, pipes, valves, fittings, controls and seals listed above are included.
Can it be combined with air massage?
Yes, provided the tub configuration is prepared to accommodate both systems.
