Preparing the Base for a Hot Tub or Outdoor Sauna

Groundwork before delivery

Stable, level, drained and accessible

A hot tub and an outdoor sauna do not place the same loads on a base. This guide keeps their requirements separate, while showing the checks that both installations share: ground stability, drainage, access, service routes and accurate finished dimensions.

Confirm model drawingsDesign for wet conditionsKeep service accessCheck filled load

Checks that apply to both installations

Dimensions

Use the current model drawing, not a generic nominal size. Allow for heater position, steps, roof overhangs and working space.

Ground and drainage

Remove unstable organic material, build on competent ground and prevent water from collecting beneath or around the installation.

Services and access

Plan cable, water, drainage and service routes before the product arrives. Keep required access panels and heaters reachable.

Final design responsibility: soil, frost, slopes, retaining work and local building requirements vary. Where the consequence of movement is significant, use a competent local groundworker or structural professional and provide the current TimberIN drawing.

Part A

Preparing a hot-tub base

A filled hot tub carries the weight of the tub, water and users over its actual support footprint. The base must stay level under that load and must not obstruct drains, pipework, a heater or the panels needed for maintenance.

Common base options

  • Reinforced concrete: durable and predictable when designed and cured for the site and load.
  • Compacted aggregate with paving: practical where the formation, edge restraint and drainage are properly constructed.
  • Structural deck or terrace: viable only when the structure is designed for the filled load and point loads, with access below or around the tub.
  • Prepared gravel system: can drain well, but must be correctly graded, compacted and restrained so the supports do not settle.
Prepared level garden base for a wooden hot tub before installation
A finished surface is only as reliable as the compacted formation below it.

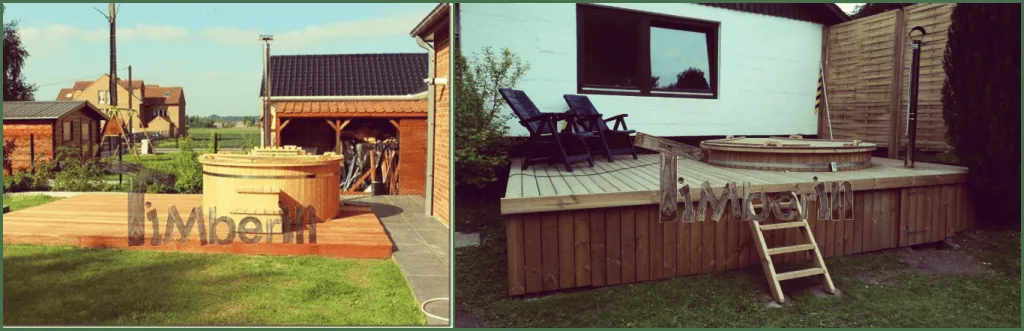

Structural wooden terrace base planned around a TimberIN hot tub installation
Terrace integration
Paving tiles and drained gravel used around a hot tub base
Paving and gravel

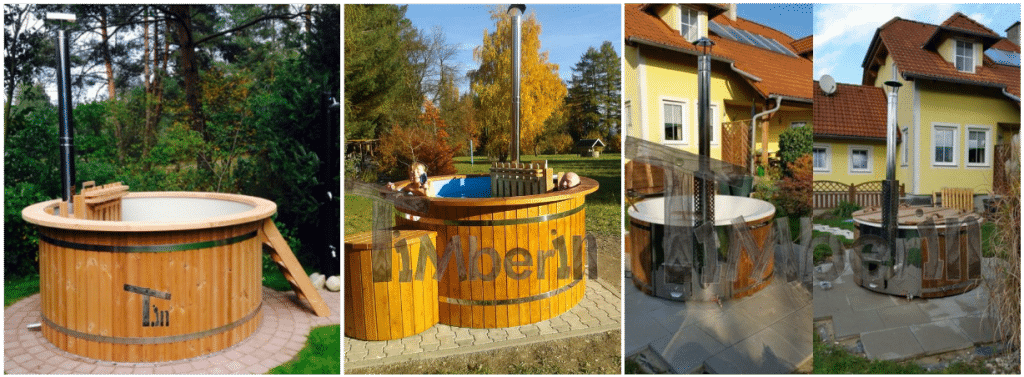

Level paving-unit base prepared to support an outdoor hot tub
Paving-unit base

Hot-tub base sequence

  1. Obtain the model drawing and estimated operating load. Include water, users, heater and accessories.
  2. Mark the complete installation footprint. Include steps, external heater and the route needed to service components.
  3. Excavate to competent material. Remove turf, topsoil and soft areas rather than compacting over them.
  4. Build the designed sub-base. Place and compact suitable material in the sequence specified by the local designer or contractor.
  5. Form the finished support surface. It must be flat, level and able to distribute the actual load without local settlement.
  6. Plan water management. Surface water and drained tub water must not undermine the base, flood equipment or create an unsafe route.
  7. Re-measure before delivery. Confirm final dimensions, access and services after all finishes and borders are installed.
Compacted gravel top layer prepared for an outdoor sauna base
A drained, compacted upper layer ready for the specified supports.

Part B

Preparing an outdoor-sauna base

An outdoor sauna is lighter than a filled hot tub but has a larger building footprint and must remain square so doors, glazing and roof elements operate correctly. Support points must match the model drawing and keep the timber structure clear of persistent ground moisture.

Sauna-specific priorities

  • Support the runners or foundation points shown on the current drawing.
  • Keep the installation level and square across the complete footprint.
  • Provide drainage and airflow appropriate to the supplied floor construction.
  • Allow for steps, a terrace, heater clearances, chimney components and door swing.
  • Do not position isolated supports from a generic sketch when the selected model uses a different frame.
Foundation-point sketch for a two metre TimberIN igloo sauna model
Example igloo-sauna support layout—verify against the current model drawing.
Foundation-point sketch for a two metre TimberIN barrel sauna model
Example barrel-sauna support layout—do not transfer it to another model.

Do not finish the base without checking delivery

A perfect foundation is not useful if the product cannot reach it. Measure the narrowest gate, turns, eaves, trees, overhead cables and the distance from the unloading point. If lifting is required, the crane or lifting provider must assess the site and safe working area.

Photograph the finished base. Send wide views, close views of supports and a tape measure across critical dimensions before dispatch. This makes discrepancies easier to resolve while the site is still accessible.

Base-preparation questions

Does every hot tub need a concrete slab?

No. Several systems can work when they are designed for the real filled load, soil and drainage. The chosen model and site determine what is suitable.

Can an existing deck support the tub?

Only after its capacity, condition, connections and access have been checked for the operating load and point loads. Do not judge by appearance alone.

Can the same support sketch be used for every sauna?

No. Runner positions and footprints vary. Use the drawing for the selected model and revision.

Should the surface be sloped for drainage?

The installation itself normally needs a level support plane. Water management around it must be designed without creating an out-of-level product; follow the model drawing and local base design.

Before groundworks begin

Ask for the current model dimensions

Use the confirmed drawing and equipment layout when briefing the local groundworker.
