Product Description
A family hot tub without wood-fired heating

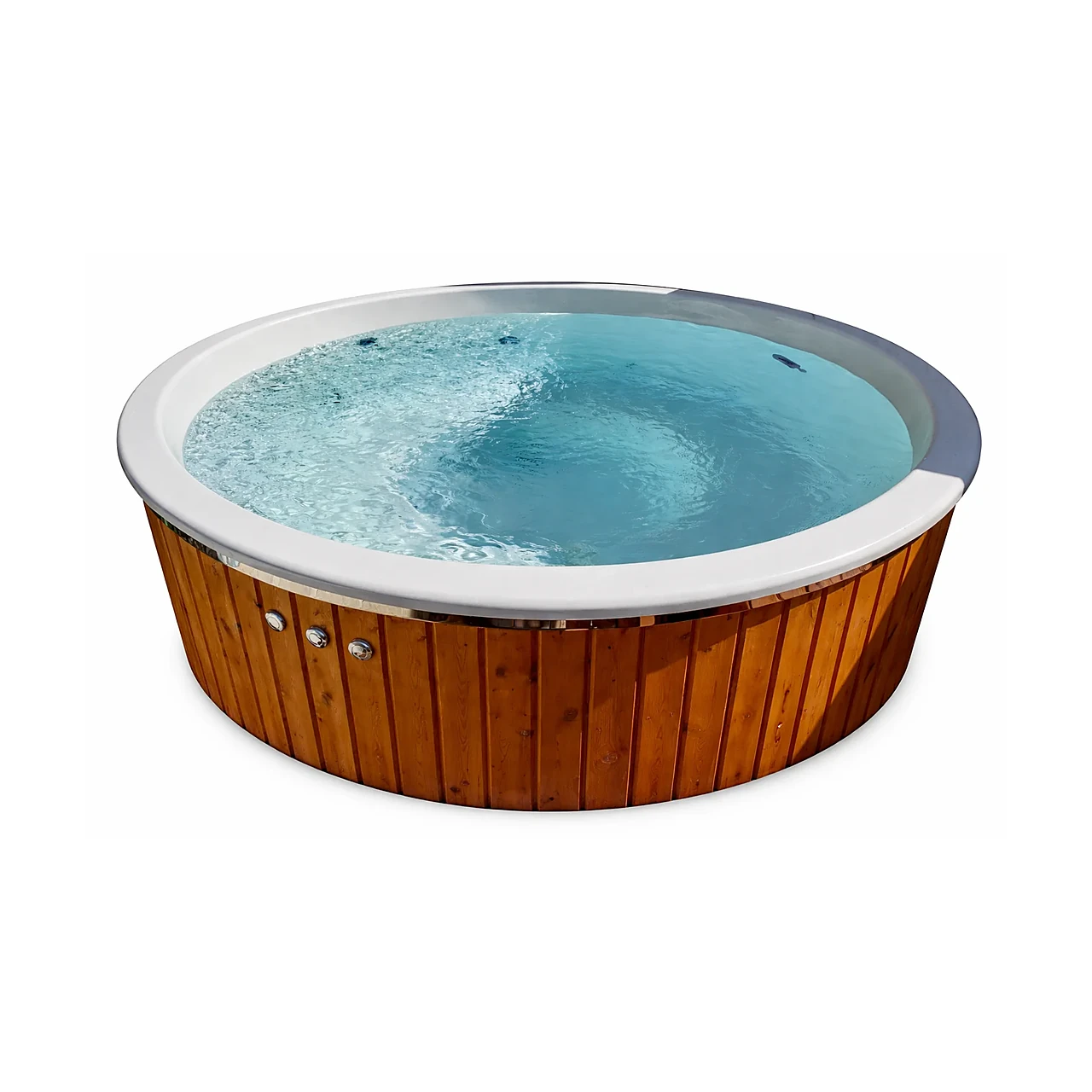

TimberIN Nordic Family™ Electric combines a round fibreglass shell with separately chosen exterior cladding. Start with the shell’s shape and size, then choose a 6 kW electric heater or a 5 kW Wi-Fi heat pump.
The current UK range has six configurations, combining three shells with these two heating choices. Older wood-fired or hybrid arrangements shown in some family documentation are not offered on this product page.
Three shells: dimensions, capacity and water volume
| Configuration | Approx. internal diameter | Approx. external diameter | Manufacturer’s capacity | Approx. water volume | Stated tub weight |
|---|---|---|---|---|---|
| Classic 1800, straight benches | 1,800 mm | 2,080 mm | 6–8 people | 1,650–1,750 litres | 150 kg |
| Modern 1800, conical shell | 1,802 mm | 2,000 mm | 6–8 people | 1,400–1,500 litres | 150 kg |
| Modern 2000, conical shell | 2,042 mm | 2,240 mm | 8–12 people | Approx. 1,550 litres | 150 kg |
The classic shell has straight walls and benches. Its documented external height is 1,200 mm, with an internal height of 1,100 mm. The conical shell of the same nominal size keeps the 6–8-person capacity range with a smaller external diameter and less water. The larger conical model increases the interior space and stated capacity range.
These manufacturer figures are approximate because each tub is made individually. The stated capacity is not a guarantee of equal comfort for every group, particularly at the upper limit. Confirm any critical access, foundation or handling dimension on the final drawing. The 150 kg is the stated tub weight, excluding water, bathers and equipment.
6 kW electric heater or 5 kW heat pump
| Current heating option | Documented specification | Practical consideration |
|---|---|---|
| Electric heater | 6 kW; thermostat range 0–45°C | Direct thermostatic heating; requires a circuit designed for the ordered unit. |
| Heat pump | 5 kW with Wi-Fi | Wi-Fi control; performance is more dependent on outdoor air temperature. |
For the 6 kW heater, the manufacturer’s sheet lists nominal connections of 220 V single-phase at 32 A or 380 V three-phase at 16 A. The rating plate and wiring diagram of the ordered unit take precedence. A qualified electrician must specify the cable, protection, earthing and final connection for the site.
The thermostat’s 0–45°C range describes the appliance; it is not a recommended bathing-temperature range.
No fixed heating time is stated for Family Electric. With approximately 1,400–1,750 litres, the result depends on starting water temperature, weather, cover, insulation and the chosen heater. Heat-pump performance is particularly sensitive to air temperature, so a time quoted for mild weather should not be applied to winter.
Shell, cladding, colours and covers
The inner shell is fibreglass. The UK exterior choices are Siberian spruce, Siberian larch, thermowood, black WPC or brown WPC. Six shell finishes are offered with colour references: blue, white, grey, blue pearl, grey pearl and granite.
Three cover arrangements are listed: a fibreglass lid, a wooden finishing edge with a wooden lid, or an insulated leather cover. The source confirms that the insulated leather cover is compatible with all models; final dimensions must match the shell ordered.
Wall and floor insulation are offered at no extra charge in the UK. Select and confirm both in your summary. The exact product documentation does not specify their material or thickness, so figures from another model are not applied here.
Filtration, massage, LEDs and Smart SPA
Choose the following comfort and water-care equipment separately:
- Water-jet hydromassage.
- Air-bubble massage.
- Sand filtration with a large wooden enclosure.
- Two or four LEDs; four are recommended in the configurator for 180–220 cm models.
- Smart SPA modules for air massage, hydromassage, sand filtration or scheduled ON/OFF control of the electric heater.
Each Smart SPA module needs Wi-Fi and the corresponding equipment. An air-massage control kit, for example, requires the air-massage system itself. Jet counts, filter flow and electrical requirements, lighting modes and detailed smart-home compatibility must be confirmed for the selected configuration.
No UV filter is currently listed among this product’s UK add-ons. A UV diagram in broader family documentation does not mean that UV is included or currently selectable here.
Confirm every item in the configurator
A wooden paddle and enclosure for the electric heater are listed as already included, and a bottom drain with stopper is offered as an included drain choice. The boxes are not automatically selected. Confirm all expected items in the final order summary and quotation.
Type A or C steps, cover, included insulation, SPA systems, colours, drain arrangement and delivery must also be checked in the same way.
Prepare the site and connections
Plan from the external diameter, then add the steps, cover-handling space, drain, service access and technical enclosure. The documented electric-heater enclosure is approximately 400 × 600 × 600 mm; filtration or a combined filtration/heating enclosure may require approximately 800 × 700 × 600 mm, depending on equipment.
The foundation must support the actual load with water, bathers and all equipment. The exact product documentation does not state a single operating load. Have the support, access and connections designed for the ordered configuration, using its final drawing.
Three drain arrangements are listed: a bottom drain with stopper, an external tap, or an external tap with a quick connector for a 12.5 or 15 mm garden hose.
Delivery and unloading
For both 1800 shells, the transport sheet gives an approximate main package of H 2,200 × W 1,300 × L 2,100 mm, plus an equipment package of H 900 × W 800 × L 1,000 mm. The larger conical model’s main package is approximately H 2,400 × W 1,300 × L 2,300 mm. Confirm the exact package envelope and assembly state before organising access and handling.
UK shipping retains a £198 green zone south of Leeds and a £429 yellow zone for the listed other areas. Delivery information specifies an 18 m / 40-tonne lorry, with a possible smaller 3.5-tonne vehicle in London. Confirm the delivery address, vehicle access, unloading arrangements and movement to the final base before ordering. The UK selector has no separate driver-unloading option; do not assume delivery includes final positioning.
Why choose Family Electric?
Family Electric suits buyers who want a family fibreglass tub without a wood stove, with a clear choice between thermostatic electric heating and a Wi-Fi heat pump. Two 1800 geometries offer a choice between the taller, larger-volume classic shell and the conical shell with its smaller external footprint.
Compared with TimberIN Nordic™ External Comfort, Family Electric focuses on electricity or a heat pump and adds a classic straight-wall shell. External Comfort serves a different project with an external wood stove or wood-and-electric hybrid heating.
Base the choice on four practical factors: seating shape, your usual group, available electrical supply and space for both tub and equipment.
Use, maintenance and warranty
The exact documentation does not provide a complete maintenance calendar, winterisation procedure or simplified warranty covering every configuration. Before commissioning, request the manuals for the shell, cladding, heater, filter and options actually ordered. The contract and supplied warranty documents remain decisive.
Frequently asked questions about TimberIN Nordic Family™ Electric
These answers cover the configurations currently documented. The final drawing, configuration summary and order documents take precedence for the product purchased.
Which sizes and capacities are available?
The classic 1800 and conical 1800 are rated for 6–8 people. The larger conical shell, approximately 2,042 mm internally, is rated for 8–12. These are manufacturer ranges, not a guarantee of equal comfort at the upper limit.
How do the two 1800 shells differ?
The classic shell has straight walls and benches, an external diameter of approximately 2,080 mm and a volume of 1,650–1,750 litres. The conical shell has moulded seating, an external diameter of approximately 2,000 mm and a volume of 1,400–1,500 litres. Both are rated for 6–8 people.
Which heating options are currently available?
Each of the three shells can be paired with a 6 kW electric heater or a 5 kW Wi-Fi heat pump, giving six configurations. No wood-fired or hybrid heating is currently offered on this page.
What supply does the 6 kW heater require?
The manufacturer sheet lists 220 V single-phase at 32 A or 380 V three-phase at 16 A. The ordered unit’s rating plate and wiring diagram take precedence. A qualified electrician must design the cable, protection, earthing and final connection.
Can the heat pump be controlled by Wi-Fi?
Yes. The current option specifies a 5 kW heat pump with Wi-Fi. Its performance depends on air temperature, starting water temperature, volume, cover and insulation.
How long does heating take?
No fixed time is published for Family Electric. Shell volumes range from approximately 1,400 to 1,750 litres, and the two heating technologies respond differently to outdoor conditions. Request an estimate for the actual shell, season and equipment.
Which cladding, colours and covers are available?
UK choices are Siberian spruce, Siberian larch, thermowood, black WPC or brown WPC, with six shell colours. Covers are fibreglass, a wooden lid with finishing edge, or insulated leather. The source confirms insulated-cover compatibility across the models; match its final dimensions to your order.
Which SPA equipment can be added?
Choose hydromassage, air bubbles, sand filtration with an enclosure, two or four LEDs, and Smart SPA kits for the corresponding systems. Confirm jet counts, filter flow and lighting modes in the order. UV is not listed in the current UK options.
Are the paddle, electric-heater enclosure and drain included?
The paddle and heater enclosure are labelled already included, and a bottom drain with stopper is listed as an included choice. Confirm every expected item in the final summary. Wall and floor insulation are also offered at no extra charge in the UK and must be selected and checked.
How much space is needed around the tub?
Start from the approximately 2,080, 2,000 or 2,240 mm external diameter, depending on shell. Add steps, cover handling, drainage, service access and the technical enclosure. The electric-heater enclosure is approximately 400 × 600 × 600 mm; a combined filtration arrangement may need approximately 800 × 700 × 600 mm.
Can the foundation be designed for 150 kg?
No. That is the documented tub weight. Add approximately 1,400–1,750 litres of water, bathers and all equipment. Have the operating load and foundation validated for the exact configuration.
Who handles unloading and final positioning?
Confirm UK unloading arrangements before delivery. The current UK configurator has no separate driver-unloading option. Movement from the unloading point to the final base must be planned separately.
Which maintenance instructions and warranty apply?
Request the manuals and warranty conditions for the exact shell, cladding, heater, filtration and options ordered. The product documentation does not provide one complete procedure for every material and season; the supplied documents and contract remain decisive.
