Product Description
A large square hot tub in one fixed size

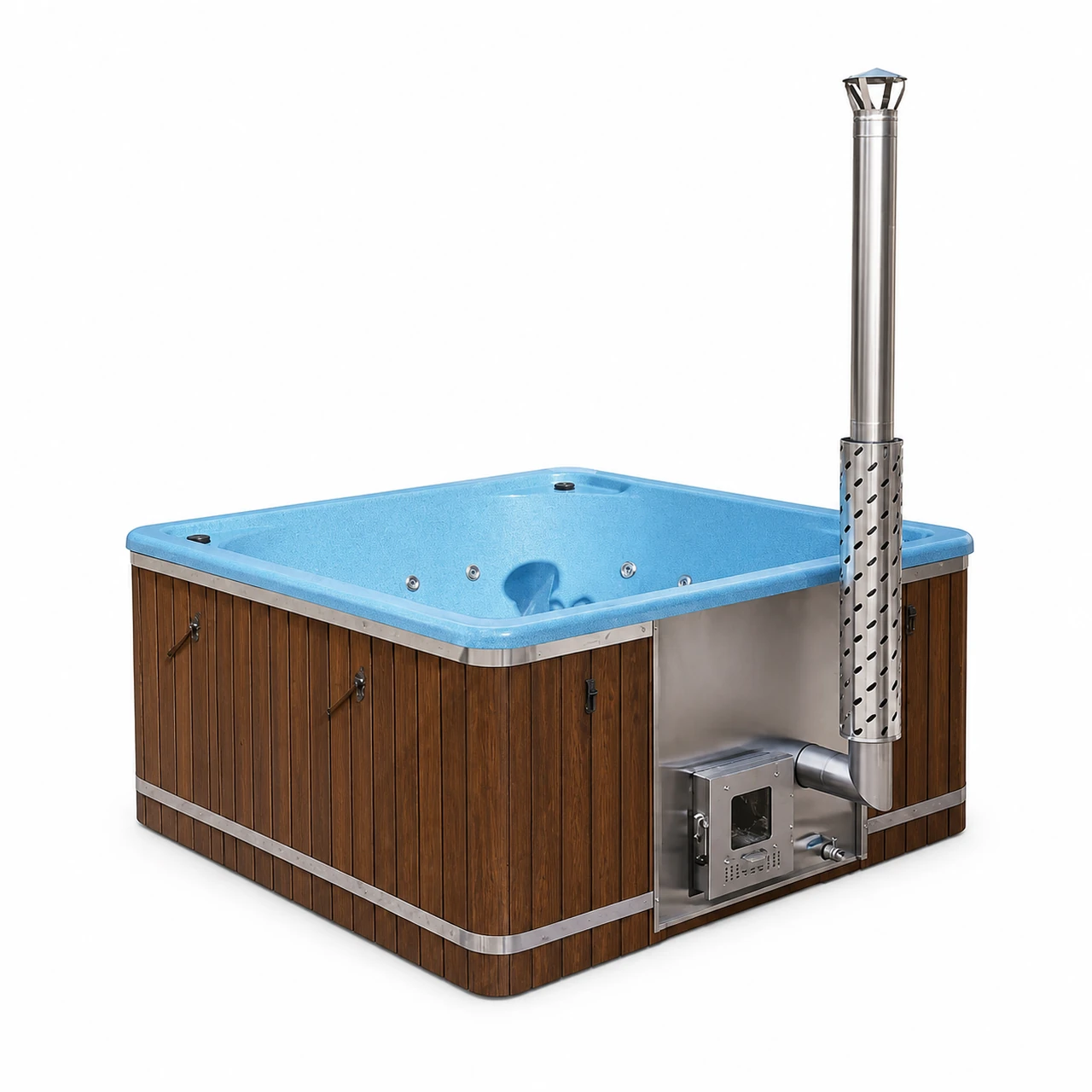

The TimberIN Nordic Elite Square hot tub combines a fibreglass shell with timber cladding and an integrated heater. Its square seating arrangement makes it suitable for larger groups, while the heater remains within the tub footprint. The stated 8–10-person capacity is a manufacturer guide, not a guarantee of equal comfort for every group. For other large-group options, see all 8 person hot tubs.
Dimensions, capacity and installation space
| External dimensions | Approximately 2,200 × 2,200 mm |
|---|---|
| Internal dimensions | 2,000 × 2,000 mm in the selector; approximately 2,008 × 2,008 mm on the drawing |
| Height | Approximately 964 mm |
| Seat height | Approximately 274–326 mm |
| Water volume | Approximately 1,800 litres |
| Manufacturer capacity | 8–10 people |
Handmade dimensions are approximate. Check the final drawing wherever access or the base depends on a tight tolerance. Allow for steps, the cover, filtration equipment, chimney clearance and maintenance access beyond the shell footprint.
Three heatings, all with the integrated AISI 316 wood stove
The wood stove is built into the tub wall and loaded from outside, so there is no separate stove beside the tub. Choose one of three heatings:
- Integrated wood-fired stove – the base price.
- Hybrid: integrated wood stove + 6 kW electric heater (WiFi-ready – WiFi module available as an add-on) – heat up with wood, then keep the temperature with electricity. The 6 kW heater runs on 220 V single phase (26 A) or 380 V three phases (14 A); a more powerful 9, 12 or 15 kW three-phase heater is available.
- Hybrid: integrated wood stove + 5 kW Wi-Fi heat pump – heat up with wood; the heat pump keeps the temperature and can also cool the water in summer. The sand filter is required with the heat pump and is added automatically.
For the electric hybrid, a qualified electrician should confirm the supply and wiring. There is no heater-free, pellet or gas variation in the current UK selector. Heating time depends on the fill temperature, weather, cover and chosen equipment; no single warm-up time is promised.
Six claddings and six shell colours
Choose spruce, larch, Thermowood, oak, WPC black or WPC brown (wood-plastic composite) exterior cladding. The UK colour group offers white RAL 9001, blue RAL 5012, grey RAL 7015, blue pearl 7700, grey pearl 7730 and granite 9001. Premium colours carry the supplements shown in the selector. Wood appearance, grain and ageing vary naturally.
Included equipment and selectable options
The included-equipment group lists the metal chimney grid and the mixing paddle; wall and bottom insulation and the fibreglass shell are also included, and an acrylic shell is available for £490. Type A wooden stairs are a separate option (£190). Confirm these in the order summary. Photographs can show extra equipment and unchecked options should not be treated as automatically ordered.
Lid and insulation
Choose an insulated leather lid (£490) with any cladding, or a wooden round edge with a wooden lid (£490) with spruce or Thermowood cladding only. Wall and bottom insulation is included at no extra charge.
Massage and lighting
Choose air massage, hydromassage, or two or four LEDs. Exact jet arrangements and lighting modes depend on the supplied equipment.
Filtration
The UK option is a sand-filter system with a wooden box; it is required with the heat-pump hybrid and is added automatically. Confirm the actual pump, flow and connections; a UV system is not offered in this selector.
Smart SPA
Wi-Fi control options cover air massage, water massage, filtration and electrical heating. The relevant equipment must also be selected; do not assume a control module includes it.
Base and access
Prepare a level base rated for the complete filled tub, users and accessories: the approximately 1,800 litres of water are only the starting point. Obtain advice appropriate to the site and final build.
For emptying, the UK selector preselects an external water tap (£70), which you can untick, or offers a tap with a quick adapter for a garden hose (12.5 mm and 15 mm, £95). Confirm the actual fittings and a suitable discharge route before installation.
Delivery, care and warranty
Confirm the delivery address, vehicle access, unloading arrangements and movement to the final base before ordering. The UK selector has no separate driver-unloading option; do not assume delivery includes final positioning.
UK delivery charges follow the zones displayed in the selector. Package dimensions, assembly arrangements and any lifting service should be agreed before dispatch. Oil exterior timber at least annually as appropriate to the finish and exposure. Follow the supplied guidance for water treatment, filtration and frost protection; drain vulnerable equipment when required. The FR source states a 24-month warranty, subject to the applicable order terms, correct installation and care.
Frequently asked questions
The selected configuration, final drawing and accepted order documents take precedence for the product supplied.
What size is Elite Square?
The external footprint is approximately 2,200 × 2,200 mm. The selector describes a 2,000 mm internal square; the drawing gives approximately 2,008 mm. Confirm the final drawing for critical tolerances.
How many people can use it?
The manufacturer gives 8–10 people. Comfort depends on the users and seating arrangement; this is not a promise of equal space for fourteen adults.
What is the water volume?
Approximately 1,800 litres, before equipment, users and any final-build differences.
Which heating systems can I choose?
Three, all with the integrated AISI 316 wood stove: the stove alone; a hybrid with a 6 kW electric heater; or a hybrid with a 5 kW Wi-Fi heat pump, which can also cool the water. The sand filter is required with the heat pump.
What electrical supply does the hybrid need?
The 6 kW electric heater runs on 220 V single phase (26 A) or 380 V three phases (14 A). The optional 9, 12 and 15 kW heaters need a three-phase supply. Have the supply designed by a qualified electrician.
Can I order it without a heater?
No heater-free choice is offered by the current UK selector.
Which finishes are available?
Spruce, larch, Thermowood, oak, WPC black or WPC brown cladding, with six shell colours including three premium finishes.
Are the lid, stairs and insulation included?
The lid is an option: an insulated leather lid, or a wooden round edge with wooden lid (spruce or Thermowood only). Type A wooden stairs are an option too (£190). Wall and bottom insulation is included at no extra charge.
What filtration is available?
The UK configuration offers a sand filter with a wooden box. There is no selectable UV option on this product.
How is it emptied?
An external water tap (£70) is preselected and optional; a tap with a quick adapter for a garden hose costs £95. Confirm the supplied outlet dimensions and discharge route.
How much space should I allow?
Allow for the 2,200 mm square shell plus steps, cover handling, equipment and the clearances required by the heater manual.
What should I confirm before delivery?
Access, unloading, movement to the base, exact equipment and delivery charge. Follow the supplied maintenance instructions and the applicable 24-month warranty terms.
