Product Description
A compact tub with a wooden bathing interior

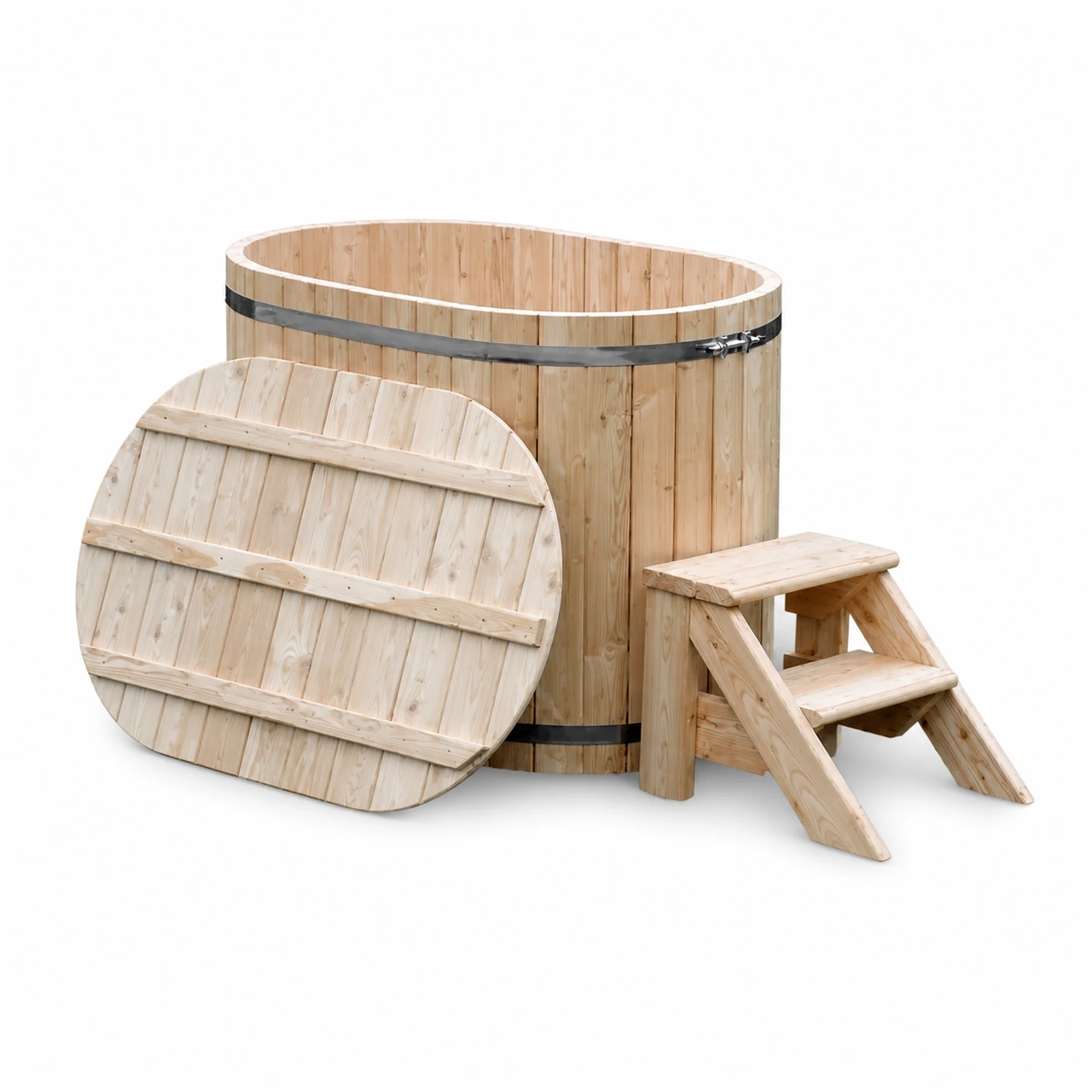

The TimberIN Nordic™ Duo Wood hot tub is an oval all-wood tub for one or two people, in spruce or Thermowood. The floor, walls and benches touching the water are the wood itself, with no shell or liner, unlike a compact tub with a polypropylene lining.
Choose the wood, one of eight heatings, the lids, stairs and accessories; the order summary shows exactly what is supplied. To compare it with the round timber models, see our wooden hot tubs.
Dimensions, capacity and project planning
| Detail | Documented value |
|---|---|
| Users | 1–2 people |
| Water volume | Approximately 1,000 litres |
| General model dimensions | 1,400 × 900 × H1,000 mm |
The 1,400 × 900 mm dimensions are not defined as a strictly internal or external interface. Handmade measurements may vary. Confirm critical terrace openings, access routes, heater positions and connections before production.
Eight heatings around the external 22 kW AISI 316 stove
| Heater choice | Result |
|---|---|
| External wood stove | 22 kW, AISI 316 stainless steel, beside the tub |
| Electric 6 kW | 220 V single phase (26 A) or 380 V three phases (14 A); 9, 12 or 15 kW available; no stove or chimney |
| Hybrid electric | 6 kW electric heater plus the external wood stove |
| Hybrid heat pump | 5 kW Wi-Fi heat pump (heating and cooling; 220 V single-phase, 5 A) plus the external wood stove; the sand filter is required and added automatically |
| Connections for your own heater | 50 mm connections with shut-off valves; no heater supplied (also for unheated or cold-water use) |
| Pellet | External 30 kW AISI 316 pellet stove, controlled over Wi-Fi |
| Gas | 24 kW LPG (propane) water heater at 30 mbar; the pressure reducer is not included |
| Bioheater | Bioheater, 19 kW, with connections, fuel tank, circulation pump and smart plug |
The external wood stove has a documented output of 22 kW. Its body is approximately 400 × 620 × H670 mm. Keeping it outside preserves the bathing area, but requires space for the body, two water connections, chimney and maintenance access beside the tub.
Every heating is offered with spruce or Thermowood: 16 combinations. For no heater, or unheated / cold use, choose Connections for your own heater. Electric heating is possible with the pre-assembled tub and with the flat-packed kit. There is no documented fixed heating time: starting temperature, weather, fuel and use of a cover affect the result.
Spruce or Thermowood
Both timbers are offered with all eight heatings. Photographs show lighter and darker examples, but the documentation does not define a standard finish or a quantified performance comparison between woods. Specify the exact timber and finish in the quotation.
Covers, filtration, air bubbles and lighting
Covers
Lids are options: a wooden lid (£190; 1,400 × 900 mm) and/or an insulated leather lid (£490). Choose either, both or none.
Filtration
Sand filtration with a large wooden enclosure (£790; H800 × W700 × L600 mm) is available; it is required, and added automatically, with the heat-pump hybrid.
Massage
Air-bubble massage with a wooden equipment box (£680) is an option.
Lighting
Two LEDs (£280) are an option. Wi-Fi app/voice control kits are offered for air massage (£160) and sand filtration (£160), and a scheduled on/off kit for the electric heater (£190, with the electric heatings only).
With the wood and pellet stove heatings: a metal chimney fence (£85) and an ash shovel and rake (£53). For emptying, the UK selector preselects an external water tap (£70), which you can untick, or offers the tap with a quick adapter for 12.5 or 15 mm garden hoses (£95). Most option groups accept several choices or “None”; shipping and water release take one choice.
Confirm the actual filter flow and electrical specification, air-system details and LED modes for the order. Equipment shown in photographs does not establish inclusion.
Record the supplied package in the order
Included: the wooden benches and the paddle. Stairs are options: type A (£190), type B (£60) and type C (£290); each option group asks for a choice or “None”.
The B-type stairs measure H500 × W500 × L550 mm. Add their footprint to the layout.
Base, equipment space and drainage
Provide a solid, horizontal surface. Properly designed compacted aggregate, timber decking or paving may be suitable for the site and load. Avoid a slope that could distort the tub over time.
Have the base assessed for the filled tub, including water and users, for the actual configuration and ground.
Allow more than the tub’s 1,400 × 900 mm footprint. Include steps, heater, flue, cover handling, filtration enclosure, drain and service access. The documentation also shows flexible PVC drainage 400–920 mm long with 45 mm internal and 50 mm external diameter; the final routing depends on the site.
Factory-assembled or flat-packed delivery
The UK delivery selector offers factory-assembled and flat-packed kit options for both green and yellow delivery zones. Every heating, electric included, is available both assembled and as a kit. Choose after checking access from the truck to the final position.
The main package is H1,300 × W1,400 × L1,950 mm, as shown on the delivery drawing in the shipping options. An additional side package for SPA systems or heaters measures H900 × W800 × L1,200 mm.
The UK page has no separate driver-unloading assistance choice. Confirm unloading responsibilities, access, handling and any lifting equipment before dispatch. Delivery does not by itself include movement to the final base.
Obtain the care instructions for the wooden tub
The exact product documentation does not establish a wood-care schedule, water-treatment routine, frost procedure or detailed warranty terms. Do not copy these from a tub with a synthetic shell. Obtain the instructions and conditions for the timber, heater and selected equipment before confirming the project.
Why choose Nordic™ Duo Wood?
Choose Duo Wood for a two-person oval tub with wood as the bathing surface: spruce or Thermowood, eight heatings and separately selected lids, stairs and comfort options.
The TimberIN Nordic Duo has a moulded fibreglass shell (1,900 × 1,190 mm), and the Nordic Oval Duo a polypropylene liner; both offer the same eight heatings. For a larger all-wood tub see TimberIN Nordic™ Wooden Basic. Compare all 2 person hot tubs.
Frequently asked questions
The selected configuration, final drawing and accepted order documents take precedence for the product supplied.
What are the dimensions and capacity?
Approximately 1,400 × 900 × H1,000 mm, 1–2 users and 1,000 litres.
Are the 1,400 × 900 mm dimensions exact?
No. They are approximate general dimensions, not a defined internal or external interface. Confirm critical measurements on the final handmade-product drawing.
Can it be used as a cold tub?
Yes: choose Connections for your own heater (no heater installed). Manage water temperature and operation for the actual project.
Which wood heater is available?
The external wood stove in AISI 316 stainless steel, rated at 22 kW, alone or as a hybrid with the 6 kW electric heater or the heat pump; an external 30 kW pellet stove is also offered. Allow for its water connections, chimney and service access beside the tub.
Can I choose electric heating?
Yes. The 6 kW electric heater runs on 220 V single phase (26 A) or 380 V three phases (14 A), with 9, 12 or 15 kW available; it is also offered as a hybrid with the external wood stove. Electric heating is possible with the assembled tub and with the kit.
Which woods and covers are offered?
Spruce or Thermowood. The wooden lid (£190, 1,400 × 900 mm) and the insulated leather lid (£490) are options; choose either, both or none.
Are the steps, benches and paddle included?
The benches and the paddle are included. Stairs are optional extras: type A (£190), type B (£60) and type C (£290).
Can I add filtration, air bubbles and LEDs?
Yes. UK options are air-bubble massage (£680), sand filtration with a wooden enclosure (£790) and two LEDs (£280); four LEDs are not offered on this model.
What base and space should I prepare?
A solid, level base assessed for the actual installation. The assessment should allow for the filled tub, including water and users. Add all equipment, steps, cover handling, drainage and access to the tub footprint.
Does it arrive assembled or as a kit?
Both are available in the UK delivery groups, with every heating. Check access and handling against the H1,300 × W1,400 × L1,950 mm main package and, with SPA systems or heaters, the H900 × W800 × L1,200 mm side package.
Will the driver place the tub on its base?
Do not assume so. The UK selector has no separate driver-unloading service; agree unloading and final positioning before dispatch.
How long will heating take?
No fixed time is documented. Starting water temperature, wood, weather and cover use influence the result.
What electrical supply is needed?
The 6 kW electric heater needs 220 V single phase (26 A) or 380 V three phases (14 A); the 9, 12 and 15 kW heaters need three phases. Spa equipment: air massage 220 V single-phase, 4 A; sand filter 220 V single-phase, 2 A; the 5 kW heat pump 220 V single-phase, 5 A. Have a qualified electrician design the installation.
