Sunken and In-Ground Hot Tubs UK: Design and Access Guide
A sunken hot tub can create a clean garden or terrace layout, but the surrounding structure must remain dry, ventilated and serviceable. Recessing a tub changes drainage, access, loading, cover handling and safe entry; it should never be treated as ordinary landscaping around a freestanding product.
This UK guide explains partial and full recesses, foundations, pits, groundwater, maintenance voids, heating, electrical work, delivery sequence and complete cost. The hot-tub model and equipment layout must be fixed before the structure is designed.
Essential rule: every pump, drain, heater connection, valve and external surface that may need inspection must remain reachable without demolishing the finished terrace.
Sunken, recessed and in-ground are not identical
A partially recessed tub sits below the surrounding level while leaving part of the wall visible. A fully sunken installation places the rim close to deck or terrace level. “In-ground” may describe either arrangement or a purpose-designed unit installed in a pit. The words do not establish whether a particular freestanding tub can be buried.
Ask the manufacturer to approve the exact recess and provide external dimensions, support points, equipment positions, clearances and service requirements. If a model relies on air movement around timber cladding, enclosing it tightly can shorten its life and invalidate assumptions behind the design.
Models listed for in-ground project planning
The current in-ground category appears below. Open each listed model for its selectable size, heater and equipment information, then obtain written approval for the intended recess. Do not substitute another above-ground product after the pit and deck are built.
How deep should the hot tub be recessed?
| Arrangement | Potential benefit | Main design concern |
|---|---|---|
| Freestanding | Maximum access to walls, heater and equipment | Higher entry and more visible external body |
| Shallow recess | Lower step while retaining much of the service access | Edge details, drainage and removable panels |

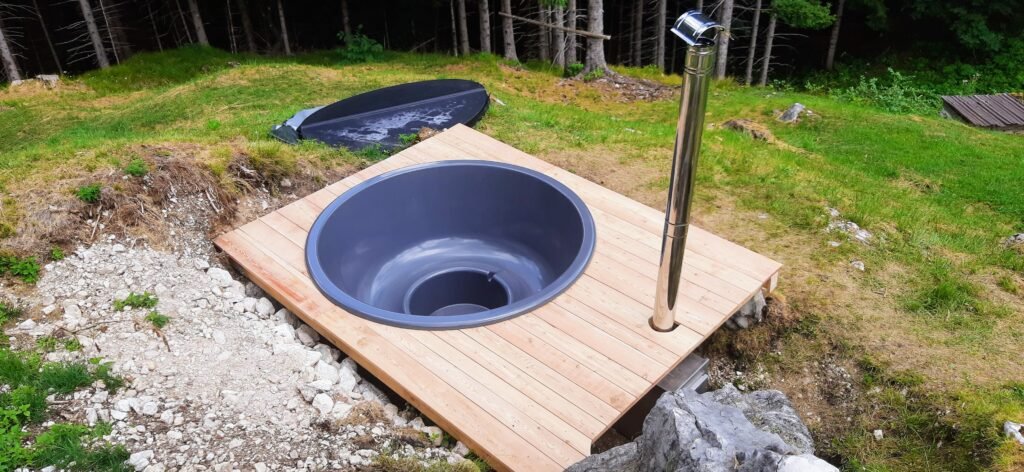

| Half recessed | Balanced visual integration and entry height | Structural opening, ventilation and safe approach |
| Rim near deck level | Minimal visual barrier around the tub | Fall risk, cover handling, pit drainage and complete service access |
The safest and most practical depth depends on user mobility, supervision, cover type and equipment location. A flush rim can be harder to see and may encourage users to step down unexpectedly. A raised edge often gives a clearer visual boundary and a place to hold while entering.
Fix the model before designing the structure
The final product drawing should control the pit, slab, deck opening and service panels. Confirm the selected diameter or shape, external heater, chimney, pumps, filters, drain, pipe connections, insulation and cover. Optional systems can move access points or require more space than the base model.
Allow tolerances for installation and removal. A structure built exactly to the nominal shell size can trap the tub when timber moves or equipment needs replacement. Agree a lifting or extraction route so the complete unit can be repaired or removed in future.
Foundation and structural loading
The base carries the empty tub, operating water, heater and users. The surrounding deck or retaining structure carries people and its own loads separately. Obtain the model’s support points, water volume and full dimensions, then have the foundation and structure designed for the actual ground and arrangement.
Do not support the tub on decorative decking unless that construction is designed for it. Settlement or uneven support can distort the shell, pipework and doors. Keep external heaters at the correct level relative to the water system and provide independent support where required.
Pit drainage and groundwater
A recessed area can collect rain, surface water, leaks and groundwater. The drainage design must work when the tub is full and should not depend on a pump without an alarm or contingency. A flooded pit can damage equipment, wet timber and create an electrical hazard.
Assess soil, water table, falls and where discharge is allowed. Provide inspection points and keep the main tub drain accessible. If treatment chemicals are used, follow local disposal guidance rather than connecting the drain to an arbitrary soakaway or watercourse.
Service access and removable panels
Draw every component that may need cleaning, tightening, draining or replacement. Access panels should be large enough for a person and tools, not only for viewing. They need durable supports, safe lifting and a way to remain open while work is completed.
Where access from one side is impossible, consider a continuous maintenance void or multiple panels. Leave room to disconnect and remove a pump, filter, heater or pipe. Record panel positions before the final surface hides them and give the drawing to future owners and technicians.
Ventilation and moisture around timber
Warm water and enclosed ground create persistent moisture. The cavity should not trap condensation against cladding, insulation or electrical equipment. Use model-specific ventilation and material guidance, and keep soil or wet masonry away from timber that is not designed for contact.
Provide a way to inspect hidden surfaces for leaks, decay and corrosion. A finished deck that looks dry above can conceal damp conditions below. Removable panels, lighting and drainage observation points make maintenance realistic.
Wood-fired heating in a recessed layout
An external stove normally needs open access, clearances, fuel handling and a safe chimney route. It should not be buried in a poorly ventilated pit. Integrated or internal heaters also require guarding, water-level control and access for inspection and ash or service work.
Coordinate stove position with the deck edge and user route. The person tending the fire should not lean across the tub or stand in a narrow opening. Follow the approved pipework and circulation arrangement; never light a water heater before the system is properly filled.
Electrical equipment and wet-area design
Electric heaters, pumps, filters, jets and lights must be included in the design before the pit is closed. Give a competent electrician the exact equipment ratings, controller information and layout. Cable routes, isolation, protective devices and accessible connections must suit the relevant UK requirements and environment.
Do not place controls or connections where drainage failure can submerge them. Any sump pump, alarm or pit lighting is an additional load and maintenance item. Keep certificates and circuit information with the tub documents.
Filling, emptying and frost protection
Plan a filling route that does not leave hoses crossing the entry. The main drain and all low points must remain reachable. A recessed installation may hide pipework from view, making a documented drain-down sequence especially important.
For winter shutdown, remove water from the shell, stove, pumps, filters, valves and exposed pipes as instructed. A sheltered pit can still freeze. Do not rely on the surrounding ground or cover as automatic frost protection.
Safe entry, edges and cover handling
A flush deck removes the normal external wall from the user’s visual field. Define the edge with lighting, material contrast or a raised detail that does not create a trip hazard. Provide stable entry points, hand support where needed and continuous child supervision.
The cover must open, close and store without blocking the maintenance route or leaving an unprotected pit edge. Confirm whether it folds, lifts or needs complete removal. A deck-level tub may need a purpose-designed cover-support solution rather than a generic lifter.
Delivery and construction sequence
- Select the final hot-tub configuration and obtain approved drawings.
- Survey delivery, lifting and future removal routes.
- Design the foundation, pit, drainage, ventilation and structure together.
- Install accessible electrical, chimney and water provisions.
- Deliver and place the tub before closing restrictive deck sections.
- Connect, test and commission every system.
- Verify service panels, drainage and cover operation.
- Finish the surface and retain an as-built access drawing.
Planning, building and insurance checks
Excavation, retaining structures, raised decks, shelters, chimneys and commercial use can trigger questions beyond the hot tub itself. Rules vary by UK nation, property and local authority. Check the complete proposal, including drainage and proximity to boundaries or buildings, before irreversible work.
Tell the insurer about permanent structures, electrical work, wood burning and guest use where relevant. Holiday and commercial projects need documented water, cleaning, inspection, user and emergency procedures in addition to the physical installation.
Complete sunken-project cost
| Cost area | Typical scope | Common omission |
|---|---|---|
| Hot tub | Selected size, body, heater, cover and options | Pricing a base model instead of the approved configuration |
| Groundworks | Excavation, disposal, base, retaining work and waterproofing strategy | Groundwater or difficult access |
| Drainage and ventilation | Gravity drains, sump, alarms, channels and cavity airflow | Maintenance and failure contingency |
| Structure | Deck, terrace, edge, steps, rails and removable panels | Future equipment removal |
| Services | Electrical, chimney, water, lighting and commissioning | Coordination between trades |
| Logistics | Delivery, crane, placement and later extraction route | Closing the structure too early |
Frequently asked questions
Can any hot tub be installed in the ground?
No. The manufacturer must approve the exact recess and provide support, ventilation, drainage, clearance and service requirements. A freestanding tub should not simply be buried.
Is a fully flush hot tub safer to enter?
Not automatically. A flush edge can be less visible and creates a step down. Entry design should consider user mobility, hand support, lighting, supervision and cover handling.
How much service access does an in-ground hot tub need?
Enough to inspect, disconnect and remove every maintainable component. The exact panels or void depend on the model and options; small viewing hatches are usually insufficient for repairs.
How is rainwater removed from a hot-tub pit?
The site design may use gravity drainage, a sump system or another engineered route. It should account for surface water, leaks, groundwater, maintenance and failure without flooding equipment.
Does a sunken hot tub cost more than a freestanding tub?
The product may be similar, but excavation, structure, drainage, ventilation, access panels, lifting and coordinated services usually make the complete project more complex.
Design the tub and structure as one project
Share the proposed recess depth, site photographs, access route and desired heating and spa equipment. The next step is a final model drawing that a structural, drainage and services team can design around.
